Bars
dry_cleaning Bars are fixtures that attach to shelves Racks and hold items, typically widgets Product Positions, but also sub-fixtures, like inventory_2 Containers or shelves Sub-Racks.
A Bar can be created via add_box Insert > dry_cleaning Bar (via context or header menu). Pressing "Q" creates a Bar at the cursor location.
Properties

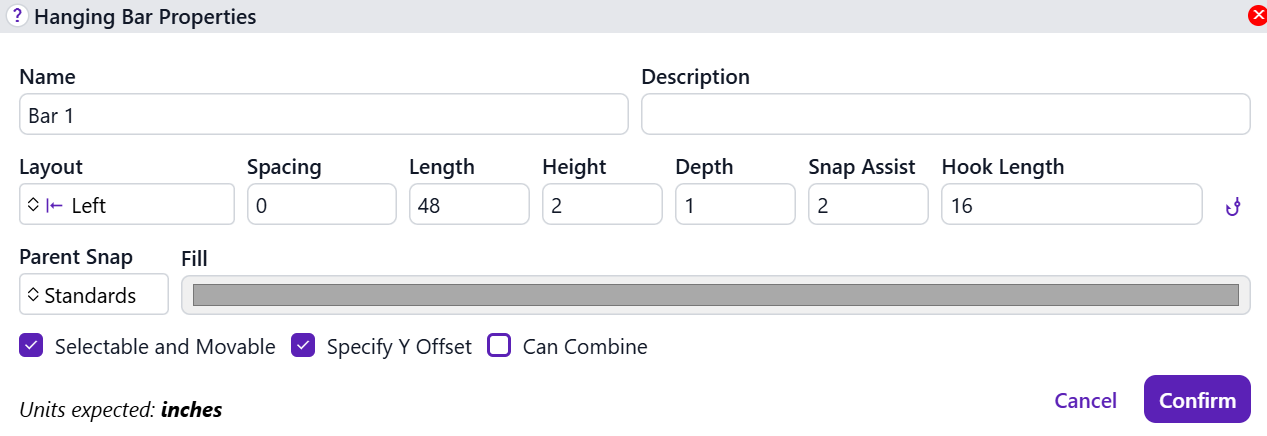

A Bar's properties can be edited by double-clicking it, or via Right Click > info Properties.
As with most fixtures, Bars support Layouts for automatic content alignment.
The special Hooks Layout defines finite valid snap points on the Bar for widgets Product Positions. These Positions will have their phishing Hook inferred from this Bar's Hook Defaults (more below)
For some layouts, Spacing defines the horizontal space left between each item when its content is laid out.
The Hook Length input allows you to specify the default hook length for items affixed to this Bar.
If the phishing checkbox is checked, you can instead specify an exact default Hook for items on this Bar.
If this Bar is using the Hooks Layout, all predetermined Hooks on the bar use this Hook Length / Hook default.
If checked, if this Bar is vertically aligned with other Bars of the same Layout, they will be treated as one, and the layout will account for the entire length of all Bars.
Editing Multiple Bars
If multiple Bars are selected, you can edit their info Properties through the same dialog.
Use the content_copy Propagate checkbox buttons to declare a change to a property should be applied to all selected Bars.
Dragging Over Bays
When multiple dragging Bars over shelves Bays, they will all snap to the Bay the cursor is over.
For each dragging Bar to snap to the Bay it is dragged over instead, , hold the Alt key while dragging.
